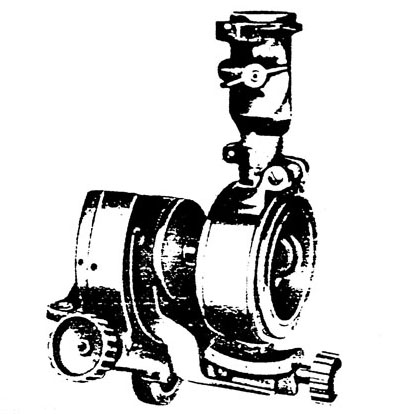

MOUNT, TELESCOPE：M21A1

Model：M21A1

Federal stock No.：
M21A1---------1240-757-8596

General：
MOUNT, TELESCOPE：M21A1, is used with TELESCOPE, PANORAMIC：M12A7H for laying in azimuth for direct and indirect fire on HOWITZER, LIGHT, TOWED：105-mm, M101A1. This mount consists of a socket which supports the panoramic-telescope, a longitudinal leveling mechanism, a cross leveling mechanism and azimuth error caused when the weapon is elevated with the trunnions out of level. There is an index on the longitudinal leveling mechanism and a matching pointer on a clamp. The mounting bracket has an extension with a hole for mounting the telescope mount on the trunnion of the weapon. Instead of scales and micrometers, there are indexes on the rocker and actuating arm to indicate 0° elevation. There is no angle of site mechanism. LIGHT, INSTRUMENT：M19 is used with the mount for night operation.

differences among models

data plate location
The identification plate (nameplate) is on the cross level worm mechanism.

Classification：Standard A（OTCM 25702）

CHARACTERISTICS
Length............................. 113/4 in.
Width............................... 113/8 in.
Height.............................. 101/8 in.
Weight............................. .46 lb
Limits of Operation：
Elevation..................... 1,955.80 mils of arc
Depression................. 533.40 mils of arc
